MCP6004: Datasheet, Pinout, Parameters

  What is a CR 1632   B attery ? The CR1632 battery is a battery that provides a constant flow of voltage, yet is lightweight enough for travel and storage. These batteries are created with performance in mind, giving you the long lasting power to supply all of your devices with the energy needed to perform. Used in many different devices such as calculators, cameras, heart rate monitors, and even toys, these batteries are able to operate well under many different temperature ranges. With a long shelf life and a superior storage capacity, the CR1632 is a battery that provides trustworthy power for your smaller electronic devices. What is a CR2032   B attery ? The CR2032 coin cell battery possesses high energy density and has ability to perform consistently in extreme temperatures (ranging from 85C to -30C) environments compared to other batteries. It uses manganese dioxide lithium chemistry with a voltage of 3 volts and 225 mAh typical in capacity. It has a height of 3.2 ...

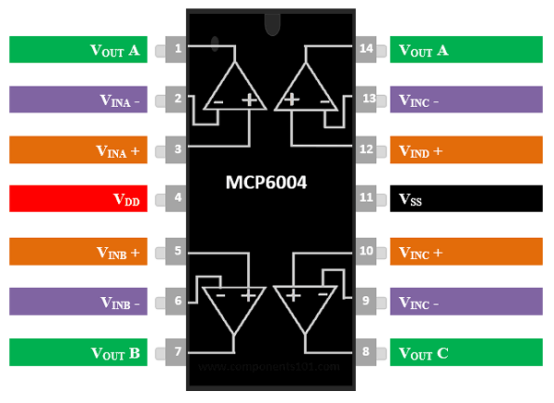

  Product Overview The MCP6004 is a Quad Op-amp 14-Pin package. The Op-amps are known for their low power and high bandwidth gain. The bandwidth gain is upto 1MHz and the operating voltage could be as low as 1.8V with a quiescent current of only 100uA. These ICs are commonly used in amplifier designs required high gain. MCP6004   Features   1MHz, Low Power Op-Amp   Operating Voltage Range: 1.8V to 6V   Quiescent current: 10uA   Output pin current: 30mA   Output pin Voltage: Rail to Rail   Common Mode Input Range: 300mV from Vss/Vdd   Common Mode Rejection ratio(SMRR): 76dB   Open Loop Gain: 112dB   Available in 14-pin PDIP, GDIP, PDSO packages   MCP6004   Applications   Audio designs for Automotive   Portable audio player   Battery operated devices   General purpose amplifier   Analog Filters and tuners   Available Tools   SPICE Macro Models (at www.microchip.com)   FilterLab® Softw...
