AD823 Amplifier Datasheet

 Product Overview

The AD823 is a dual precision, 16 MHz, JFET input op amp that can operate from a single supply of 3.0 V to 36 V or from dual supplies of ±1.5 V to ±18 V. It has true single-supply capability with an input voltage range extending below ground in single-supply mode. Output voltage swing extends to within 50 mV of each rail for IOUT ≤ 100 μA, providing outstanding output dynamic range.



An offset voltage of 800 μV maximum, an offset voltage drift of 2 μV/°C, input bias currents below 25 pA, and low input voltage noise provide dc precision with source impedances up to a Gigaohm. It provides 16 MHz, −3 dB bandwidth, −108 dB THD @ 20 kHz, and a 22 V/μs slew rate with a low supply current of 2.6 mA per amplifier. The AD823 drives up to 500 pF of direct capacitive load as a follower and provides an output current of 15 mA, 0.5 V from the supply rails. This allows the amplifier to handle a wide range of load conditions.



This blog will introduce AD823 systematically from its features, pinout to its specifications, applications, also including AD823 datasheet and so much more.



AD823 Features

Single-supply operation

l Output swings rail-to-rail

l Input voltage range extends below ground

l Single-supply capability from 3 V to 36 V

High load drive

l Capacitive load drive of 500 pF, G = +1

l Output current of 15 mA, 0.5 V from supplies

Excellent ac performance on 2.6 mA/amplifier

l −3 dB bandwidth of 16 MHz, G = +1

l 350 ns settling time to 0.01% (2 V step)

l Slew rate of 22 V/µs

Good dc performance

l 800 µV maximum input offset voltage

l 2 µV/°C offset voltage drift

l 25 pA maximum input bias current

Low distortion: −108 dBc worst harmonic @ 20 kHz

Low noise: 16 nV/√Hz @ 10 kHz

No phase inversion with inputs to the supply rails

AD823 Pinout

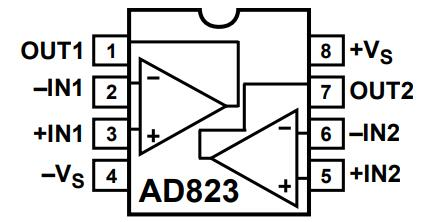

The following figure is the diagram of AD823 pinout.

AD823 Applications

l Battery-powered precision instrumentation

l Photodiode preamps

l Active filters

l 12-bit to 16-bit data acquisition systems

l Medical instrumentation

If you want to know more about AD823, you can read its datasheet.
